| MA | φ | P | HB＜150 R＜50N/mm2 Emulsione/olio |
HB＜250 R＜850N/mm2 olio |
Leghe Titanlo HB＜270 R＜900N/mm2 emulsione |
||||||
| Vc 1.0xd |
n min-1 |
Vf 100% |
Vc 1.0xd |
n min-1 |
Vf 100% |
Vc 1.0xd |
n min-1 |
Vf 100% |
|||
| M3 | 3 | 0.50 | 20 | 2123 | 1062 | 7 | 743 | 372 | 8 | 849 | 425 |
| M4 | 4 | 0.70 | 20 | 1592 | 1114 | 7 | 557 | 390 | 8 | 637 | 446 |
| M5 | 5 | 0.80 | 20 | 1274 | 1019 | 7 | 446 | 357 | 8 | 510 | 408 |
| M6 | 6 | 1.00 | 20 | 1062 | 1062 | 7 | 372 | 372 | 8 | 425 | 425 |
| M8 | 8 | 1.25 | 20 | 796 | 995 | 7 | 279 | 349 | 8 | 318 | 398 |
| M10 | 10 | 1.50 | 20 | 637 | 956 | 7 | 223 | 335 | 8 | 255 | 383 |
| M12 | 12 | 1.75 | 20 | 531 | 929 | 7 | 186 | 326 | 8 | 212 | 371 |
| M14 | 14 | 2.00 | 20 | 455 | 910 | 7 | 159 | 318 | 8 | 182 | 364 |
| M16 | 16 | 2.00 | 20 | 398 | 796 | 7 | 139 | 278 | 8 | 159 | 318 |

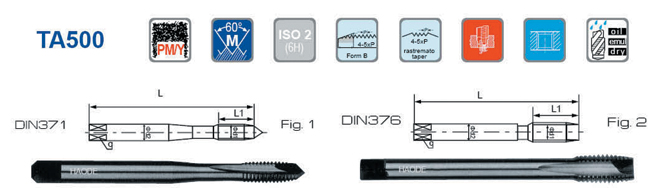

| Order No. | Diameter of blade ( ΦD1) | Thread pitch P” | Total length (L) | Length of blade (L1) | Diameter of handle (ΦD2) | q | Bottom hole | Tipo filetto Fig |
| TA500-M3×0.5 | M3 | 0.50 | 56 | 11 | 3.50 | 2.70 | 2.50 | 1 |
| TA500-M4×0.7 | M4 | 0.70 | 63 | 12 | 4.50 | 3.40 | 3.30 | 1 |
| TA500-M5×0.8 | M5 | 0.80 | 70 | 14 | 6.00 | 4.90 | 4.20 | 1 |
| TA500-M6×1.0 | M6 | 1.00 | 80 | 16 | 6.00 | 4.90 | 5.00 | 1 |
| TA500-M8×1.25 | M8 | 1.25 | 90 | 18 | 8.00 | 6.20 | 6.80 | 1 |
| TA500-M10×1.5 | M10 | 1.50 | 100 | 20 | 10.00 | 8.00 | 8.50 | 1 |
| TA500-M12×1.75 | M12 | 1.75 | 110 | 22 | 9.00 | 7.00 | 10.20 | 2 |
| TA500-M14×2.0 | M14 | 2.00 | 110 | 25 | 11.00 | 9.00 | 12.00 | 2 |
| TA500-M16×2.0 | M16 | 2.00 | 110 | 28 | 12.00 | 9.00 | 14.00 | 2 |
